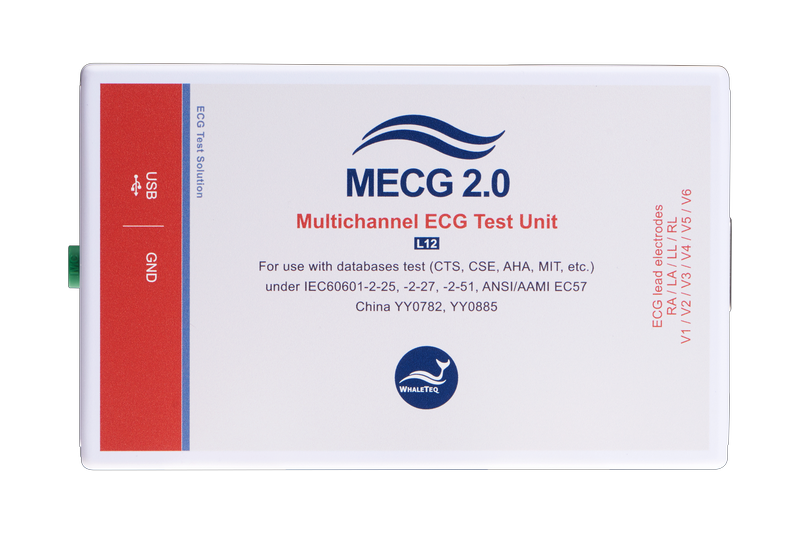

- MECG 2.0心電數據庫播放器 全模擬訊號輸出的ECG數據庫播放器，協助您完成系統及算法驗證，適用于研發及法規符合性測試。可直接加載及撥放各類型心電數據庫，符合國際及國內最新版標準：IEC 60601-2-25、IEC 60601-2-47、ANSI/AAMI EC57、YY0782、YY0885 產品詳情 產品簡介 全模擬訊號輸出的ECG數據庫播放器，協助您完成系統及算法驗證，適用于研發及法規符合性測試。可直接加載及撥放各類型心電數據庫，符合國際及國內新版標準：IEC 60601-2-25、IEC 60601-2-47、ANSI/AAMI EC57、YY0782、YY0885 產品特點 可供心電診斷、可攜式心電設備仿真數據庫產生器 支持12 導聯心電圖機，8 個信道同步產生數據庫訊號 內建CAL、ANE 及Biological 波形 可直接加載及播放AHA、MIT、CU 數據庫，無須格式轉換 較佳的輸出訊號準確度，電壓輸出<±8μV 提供軟件開發工具包(Software Development Kit) 讓用戶自行開發全自動化測試軟件 產品規格 Item Details / Reference Value Output channels The 8 output channels are provided through a network as specified in IEC 60601-2-51 to provide signals to 10 lead electrodes; in the device under test, this will be displayed as 12 leads. 8 outputs 10 lead electrodes 12 leads Voltage accuracy IEC 60601-2-51 specifies a limit of ±1%, but does not provide a lower limit (all systems must have a lower limit). An inferred specification of 1% ±5μV is derived from the device under test specification in IEC 60601-2-51 of 5% ±25μV. ±1% for values greater or equal to 500μV. ±5μV for values under 500μV. Output voltage The output voltage on most of the database and ECG is +5mV~-5mV. ±5mV Output noise level 0-150Hz Output noise should not influence the test. A value a 5μV is suitable for this requirement. Can be verified by monitoring the signal in the device under test using a “diagnostic” filter setting. <5μV Time accuracy IEC 60601-2-51 does not provide any limits. An inferred limit from the device under test. An inferred limit of ±1% is used (see 4.2). The system’s design accuracy exceeds 0.1% as a 100ppm crystal reference is used. ±1% Sampling rate A maximum sampling rate of 1kHz matches the sampling rates of ECG files. 1kHz (8 channels) Power supply Powered from the USB supply (5V 0.2A) N/A Environment Intended for normal laboratory environment. The selection of critical components such as reference voltages, DAC, precision resistors are known to be stable in the range shown. 15-30°C 10-95% RH
