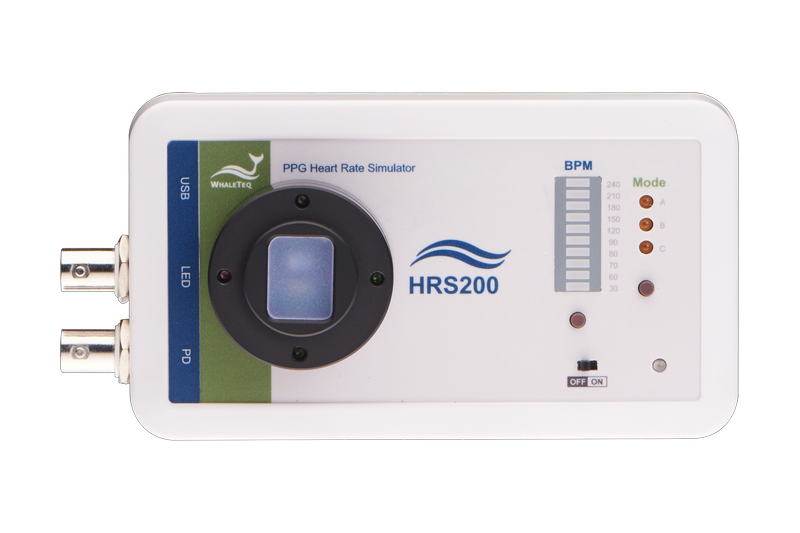

HRS200 進階版PPG心率仿真器
進階版 PPG 心率仿真器，可有效驗證及改善穿戴式裝置心率功能的精準度，適用于研發及產線測試
產品詳情
產品簡介
進階版 PPG 心率仿真器，可有效驗證及改善穿戴式裝置心率功能的準確度
產品特點
內建LED發送PPG光學訊號，仿真不同膚色反射訊號
內建Photodiode, 偵測待測物LED行為和亮度
內建40組AF, APC, VPC及1stAV block等心率不整PPG波形數據庫
心率BPM、反射亮度及PI (AC/DC)等參數可調整
可撥放原始數據(Raw Data)以驗證系統及增進驗算法的準確度
命令模式允許快速及重復的執行測試
提供噪聲訊號仿真，振幅大小可調整
產品規格
Parameters Supported range / types Accuracy
BPM 30 – 300 BPM ( PC Software ); 30~240 BPM ( Standalone Usage ) ±1 BPM
DC in PC Software HRS Mode 1 – 20 Level N/A
DC in PC Software Fine Tune Mode 100 mV – 2500 mV ±5 mV
PI in PC Software HRS mode 0.1% – 20% ( AC/DC, differs with DC level ) N/A
AC in PC Software Fine Tune mode 0.75 mV – 25 mV ( BNC measurement is magnified 100 times ) N/A
Lumen 50 – 800 Lux ( 5 mm from diffusion film ) ±3 %
Light Wavelength 525nm ±10 nm
PD Sampling Rate of PC Software Normal Mode
<8 ksps
±5μS
PD Sampling Rate of PC Software High Resolution Mode 30 ksps ±5μS
S/N Ratio >51 dB (with USB isolator) N/A
Power - USB Type B Plug connector, DC 5V IN N/A
Power - Battery Type AAA battery x 3 N/A
Size (W x H x D) 13.5 (cm) x 7.6 (cm) x 6.12 (cm) N/A
Temperature 10 ° C ~ 40 ° C N/A
