NARP Series no PD Pulse Divider 南澳電氣NARP高精度無局放分壓器
產品簡介
南澳電氣NARP高精度無局放分壓器
又稱耦合電容器，主要用于無局放測試系統測量交流電壓或采集局放電壓信號，該系列分壓器與普通分壓器比較，有以下幾個不同點：
1、南澳電氣NARP高精度無局放分壓器
都可以測量高壓電壓，但普通分壓器不能測量無局放的高壓電壓；
2、普通分壓器一般電容量較小（小于500pF），而NARP系列電容量較大，一般在600-1000pF；
3、普通分壓器為干式介質，體積比較小，重量比較輕，測量準確度一般優于NARP系列；
4、普通分壓器一般單獨使用，NARP系列分壓器一般與無局放電源一起配合使用；
南澳電氣NARP高精度無局放分壓器
產品別名
高壓測試儀、數字高壓表、高壓測量儀、高壓表、高壓數字表、分壓器、阻容分壓器、靜電電壓表、高壓分壓器、交直流分壓器、交直流高壓表、交直流高壓分壓器、交流分壓器、直流分壓器、交直流兩用高壓測試裝置、阻容式交直流分壓器、交直流阻容分壓器、交直流數字分壓器、千伏電壓表、千伏表、NAFRC型交直二用分壓器
南澳電氣NARP高精度無局放分壓器
產品特性

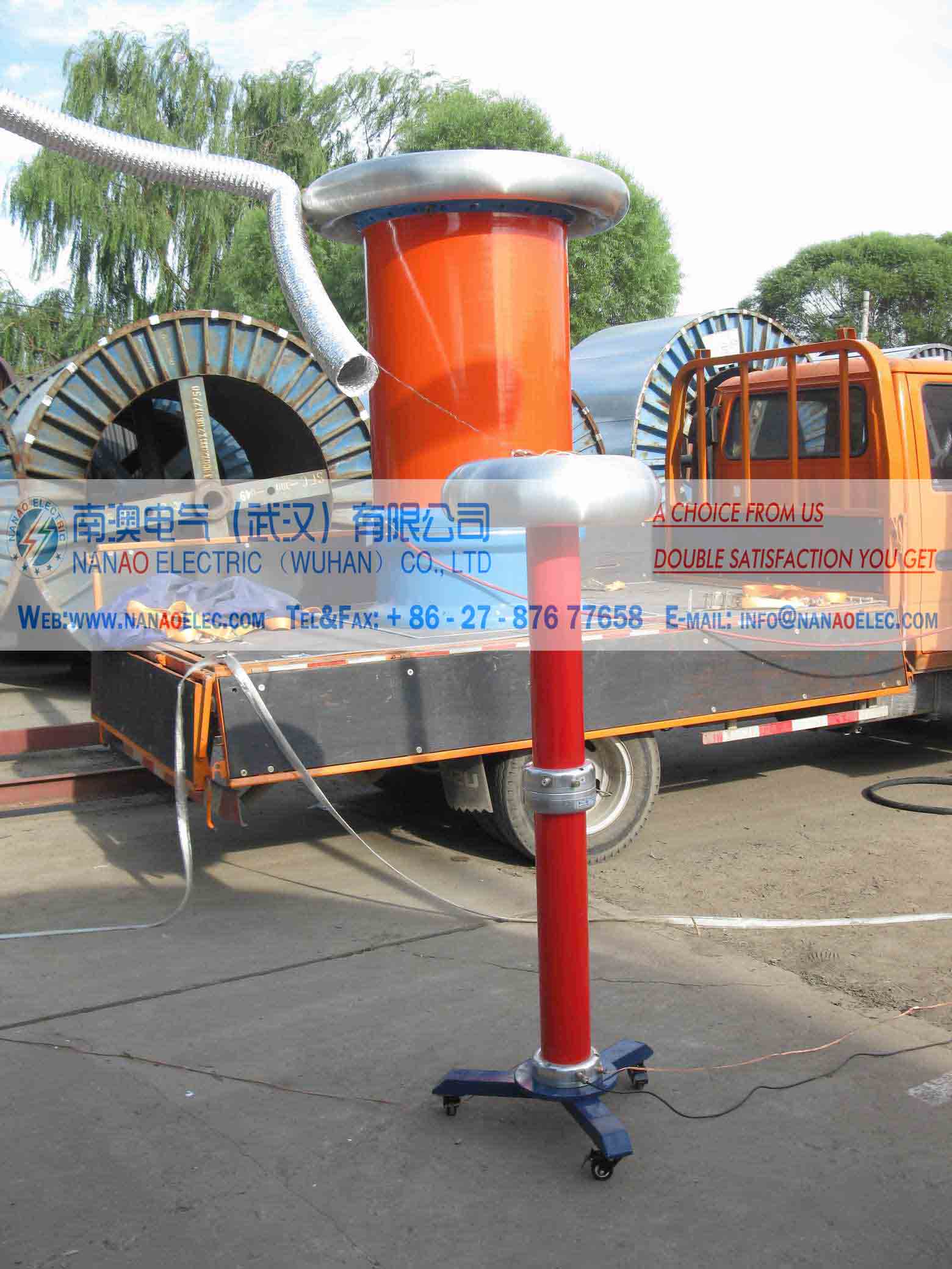

1、NARP系列無局放分壓器采用便攜式設計，配行車小輪，便于移動；
2、無局放設計，高壓金屬罩上自帶2個M10連接孔，方便連接負載；
3、配備低壓臂，既可當分壓器使用，又可以當耦合電容器使用，一機二用，性價比高；
4、底座噴涂金屬垂紋漆，防銹防油；
南澳電氣NARP高精度無局放分壓器
產品參數
1、電容量：600-1000pF(特殊容量可以定做)；
2、電壓等級：50-1000kV
3、局部放電量：額定電壓下局放量小于等于5PC;
4、絕緣介質：電容油
5、用于工頻電壓下電力設備的局放測量；
6、測量30-300Hz交流高壓、無局放測試中作為耦合電容器
Product introduction
NARP pulse divider is high-voltage measuring systems with under-damping and potential shielding. Mainly used for measuring for light wave, including light full wave,8/20us wave and other light waveform. It’s a special voltage divider for light waveform. Simple to operate, intuitive display, high precision, small in size, light in weight. It’s ideal high-voltage measuring equipment for Grid primary equipment testing(such as Zinc oxide lightning arrester waves steep testing, voltage transformer lighting full-wave testing, high-voltage switch lighting fill-wave testing, substation main transformer testing, high-voltage GIS testing,etc.), substation, high-voltage electrical equipment factory and high-voltage testing laboratory and other relative departments.
Also called name
NARP Series pulse impulse divider, pulse divider
The Characteristics of the products
Adopting imported fill material and realizing highly stable, the inside adopt highly precision resistance and low tangent capacity, partial discharge. Small size, light weight, ans easy to take.
The parameters of the products
1, Voltage level: AC: 50 kV-2000kV (Able to withstand the impact of rates 110% voltage peak value )
2, Responding time: <120ns (special requirements can be customized)
3, Impact of voltage waveform:
Lightning impulse full wave (referred as to lightning full-wave lightning) the main parameters is peak UP, pre-wave time T1, half peak time T2, the pre-wave of standard lightning full-wave time is T1 = 1.2us
Half peak value time is T2 = 50us.
In order to obtain highly accurate testing data, it is recommended to adopt US Tektronix which more than 200M oscilloscope, while the other technical specifications should meet the high-voltage lightning wave measurement requirements.
4, Accuracy: AC: 3.0%
5, Insulating medium: Imported capacitor oil
6, Environmental conditions:
Temperature: 0℃ ~ 45 ℃
Humidity: <85% RH
7, Divided voltage ratio: 1000:1 or (according to customer requirements)
Power supply: AC110V/115V/120V/127V/220V/230V/240V optional
Input frequency: 50Hz/60Hz optional
Note: Our users can select the corresponding power which based on their local supply voltage and frequency, and we will confirm it before the delivery (or inform us that the goods will be used in which country advance)
