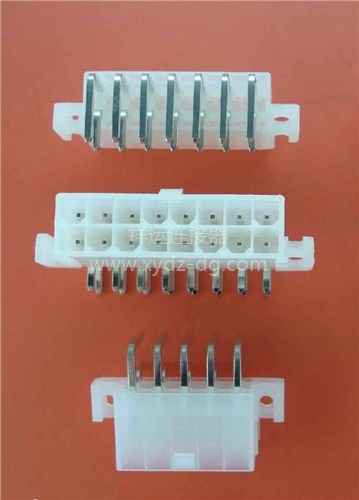

***SPECIFICATIONS*** Voltage rating: 600V AC, DC Current rating: 7A, AC, DC Withstanding Voltage: 1500V AC/minute Insulation resistance:1000MΩ min Temperature range: -25°C~+85°C Contact resistance: 20mΩ max WAFER Part No.: W4202RL-2xNP-XXXX Poles : 02-24P Housing Material: Nylon66 UL94V-2 or UL94V-0 Pin Material: Brass Contact Area Plating: Tin-Plated or Gold-Flash Mates With: H4201 dual row receptacle
