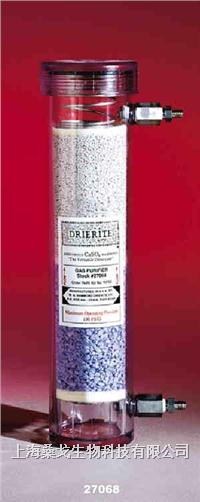

氣體干燥管GAS PURIFIER
This DRIERITE Gas Purifier is specially designed for gas chromatography and other applications requiring dry, pure gas.
It will dry, purify, and filter gases used for chromatography and spectrometry. The purifier is filled with Indicating DRIERITE
and 5A Molecular Sieves for the removal of moisture, impurities, and particulates from gas lines. It is easy to attach using
the compression type tube fittings common to most laboratory instruments. This unit is available filled with 500 cc
of Indicating DRIERITE for applications that require only drying and filtering. Plastic coated mounting clips may be
purchased separately.
Note: Do not use this drier in the presence of vapors or liquids containing phosphate esters, synthetic lubricants,
hydrocarbon solvents, methanol, acetone, lacquer solvents, or other organics.
Color Change
Indicating DRIERITE dries gases to a dryness of 0.005 mg/l. Color changes from blue to pink upon exhaustion.
5A Molecular Sieves
5A Molecular Sieves remove impurities that have an effective molecular diameter of less than 5 angstroms.
Applications
For use in gas chromatography to prevent ghost peaks and to improve baselines. The gas purifier should be used
for carrier gases and for flame lonization detector air and hydrogen gases. The gas purifier may also be used to
remove moisture and impurities from gases when purging spectrophotometer compartments, etc.
Refillable
Refillable upon exhaustion (DRIERITE turns pink) with refill kit Stock No. 27069, or contents may be regenerated.
See Regeneration of Drierite Desiccants.
SPECIFICATIONS
Construction:
Column is molded polycarbonate. Polycarbonate cap is fitted with
oring gasket. DRIERITE and molecular sieves held in place between felt filters.
Bed supports and coil spring are stainless steel. 40 Micron outlet frit is 316SS.
Dimensions:
2 5/8 " x 11 3/8 "
Max working pressure:
100 psig
Connections:
1/8" stainless steel male tube fittings
Desiccant:
250 cc Indicating DRIERITE and 250 cc 5A Molecular Sieves
Water capacity:
25 grams
Recommended flow rate:
up to 300 liters per hour for maximum efficiency
STOCK NO. DESCRIPTION
27068
Gas purifier L68GP
27069
Refill kit RF68
27070
Gas purifier L68GP filled with Indicating DRIERITE only
26809
Mounting clip
